Magcubic HY320MINI Projector
Compact HD Android smart projector with native 720P resolution, 300 Ansi LM brightness and WiFi 6.
Key Features
- Native 720P
- 300 Ansi LM
- Android 14
- Manual Focus
- Vertical Auto / Horizontal Manual Keystone
- WiFi 6 and Bluetooth 5.4
Detailed Specifications
Optical Parameters
| Native Resolution | 720P |
| Brightness | 300 Ansi LM |
| Contrast Ratio | 2000:1 |
| Throw Ratio | 0.9:1 |
| Lamp Life | 30,000+ Hours |
| Focus Mode | Manual Focus |
| Keystone Correction | Vertical: Auto; Horizontal: Manual |
| Obstacle Avoidance | No |
| Screen Recognition | No |
| Projection Distance | 0.7M-3.1M |
| Projection Size | 35-150 inch |
| Optimal Viewing Distance | 1.25M-1.6M |
| Optimal Viewing Size | 60-80 inch |
System Parameters
| OS | Android 14 |
| CPU | Allwinner H726 |
| RAM | 1GB |
| ROM | 8GB |
| WIFI | AIC8800DC -- Dual band 2.4G/5G WiFi6 |
| Bluetooth | BT 5.4 |
| Screen Mirroring | Support Wired and Wireless screen mirroring for Apple, Android, Windows devices. |
| Max. Resolution Supported | 8K@24fps |
| HDR | HDR10+,HLG |
Basic Parameters
| Built-in Speaker | 1x3W |
| BT Speaker | Support |
| Optical Engine Power | 30W |
| Overall Power Consumption | 40W |
| Standby Power Consumption | 1W |
| Operating Voltage | AC110-240V/50-60HZ |

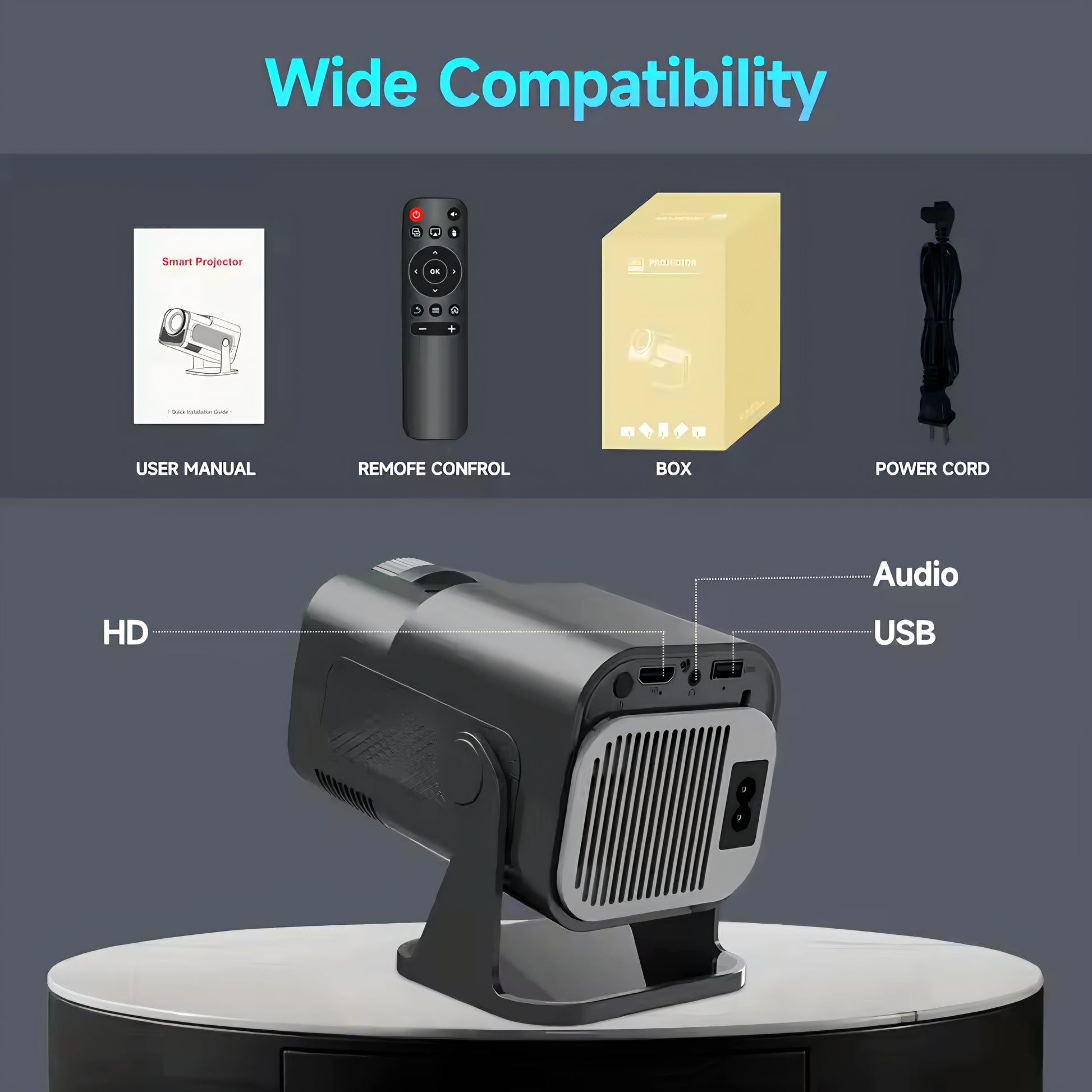

| Interface | USB x 1 / HDMI In x 1 / Audio x 1 / AC x 1 |

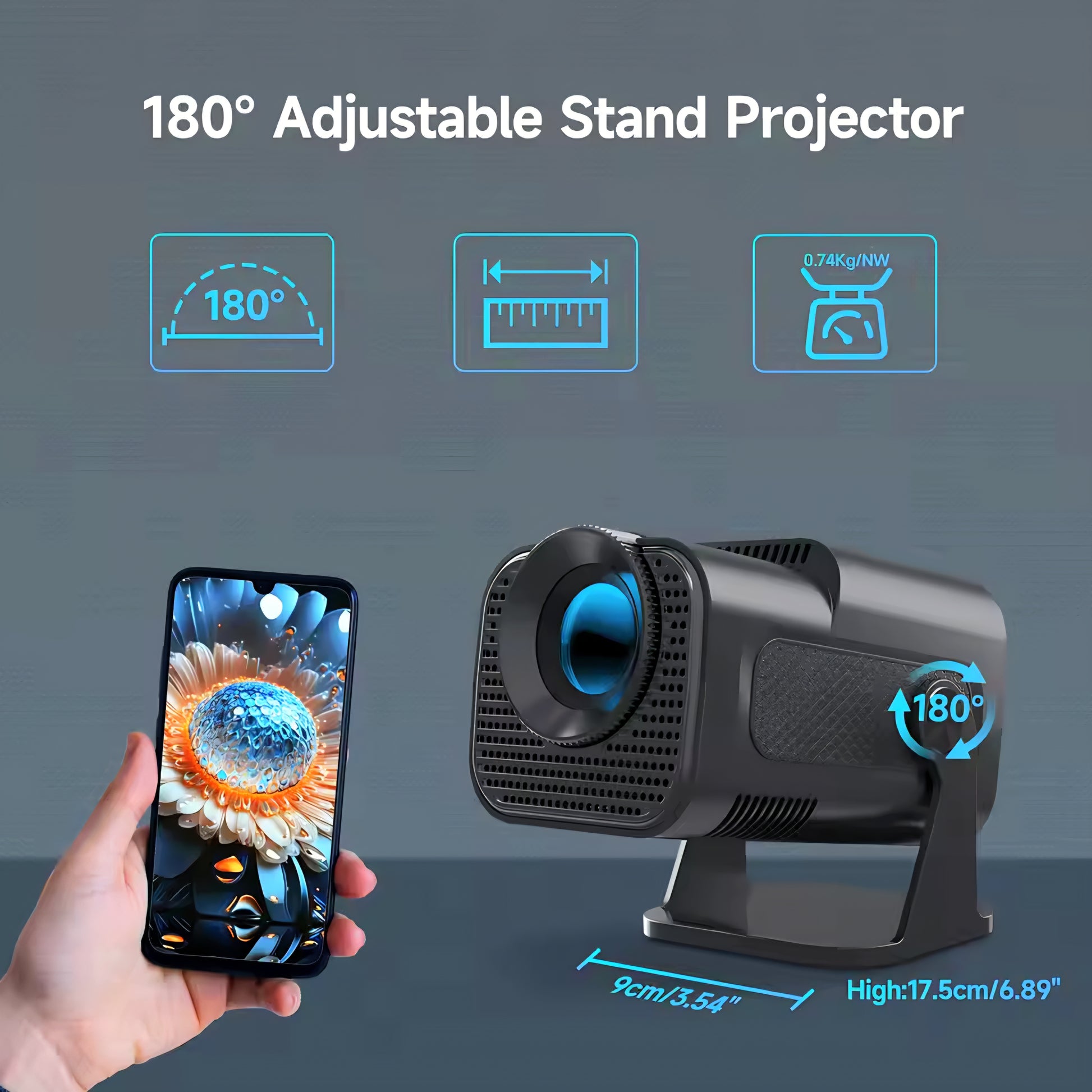

| Device Size | 90x98x175.5MM / 0.75KG |
| Package Size | 134*136*213mm / 0.83KG |
| Quantity/Carton | 18 Pieces |
| Carton Size | 428*422*445mm / 15KG |
What's Included
N/A
REAL PRODUCT PHOTOS
Product image shown in the supplied Magcubic price list.
Why Choose the HY320MINI?
The HY320MINI combines 720P projection, Android 14, WiFi 6, Bluetooth 5.4 and a compact portable design.
